| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-066-523-802 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 66 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 66 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-066-523-802 |
337-066-523-802
| ICC Number: | EDA337-066-523-802 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-066-523-802 |
| ECAD Model: | |
Specifications
Detailed Description

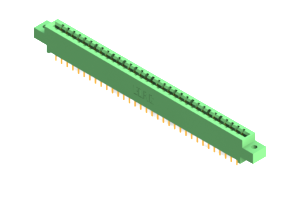

Introducing the 337-066-523-802 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector, manufactured with UL 94V-0 Thermoplastic Polyester housing material, boasts two rows of high-performance copper alloy contacts, each accommodating 66 positions with a pitch of .156 inches. Designed for straight mount orientation, it ensures secure and reliable connectivity in a wide operating temperature range from -40 to 105 °C. With a current rating of 3A, this connector is ideal for various electronic applications, guaranteeing efficient signal transmission and power delivery. Trust in the 337-066-523-802 for exceptional performance in your PCB assembly projects.
