| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-066-520-203 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 66 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 66 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-066-520-203 |
337-066-520-203
| ICC Number: | EDA337-066-520-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-066-520-203 |
| ECAD Model: | |
Specifications
Detailed Description

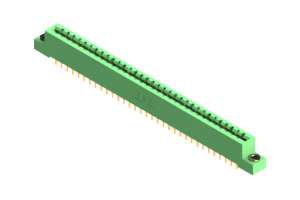

Introducing the 337-066-520-203 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 66 positions, housed in a durable UL 94V-0 Thermoplastic Polyester casing for enhanced safety and longevity. Crafted with copper alloy contacts, it ensures reliable conductivity with a current rating of 3 A. The .156-inch pitch and .2-inch row spacing offer efficient signal transmission, while its straight mount orientation allows for easy installation. Operating seamlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of applications in various industries. Upgrade your board-to-board connections with the 337-066-520-203 for dependable performance.
