| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-064-558-208 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 64 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-064-558-208 |
337-064-558-208
| ICC Number: | EDA337-064-558-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-064-558-208 |
| ECAD Model: | |
Specifications
Detailed Description

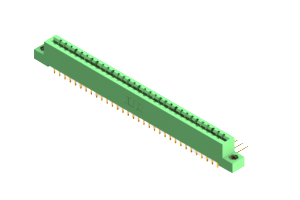

Introducing our Card Edge Connector, SKU 337-064-558-208, designed for high-performance board-to-board PCB connections. This two-row connector features 64 positions, allowing for seamless data transmission. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable connectivity in demanding environments. The right-angle mount orientation offers versatility in installation, while the .156-inch pitch and .2-inch row spacing accommodate precise connections. With a current rating of 3A and an operating temperature range of -40 to 105°C, this green connector is perfect for a wide range of applications. Upgrade your PCB assembly with this high-quality Card Edge Connector.
