337-064-540-258

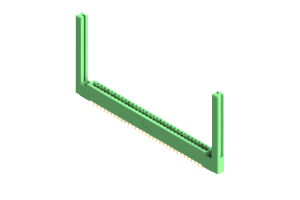

Card Edge Connector
The 337-064-540-258 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 64 positions, allowing for seamless board-to-board connections with a pitch of .156 inches. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable performance in a wide operating temperature range from -40 to 105 °C. With a current rating of 3A, this green-colored connector is suitable for various applications. Its straight mount orientation and .2-inch row spacing make it easy to integrate into your designs. Trust in the 337-064-540-258 for efficient and secure card edge connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-064-540-258 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 64 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-064-540-258 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
