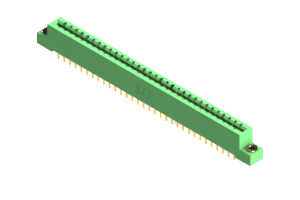

337-064-540-203
Card Edge Connector
The 337-064-540-203, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. This two-row connector features 64 positions, allowing for efficient data and power transmission. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable performance even in harsh environments. The .156-inch pitch and .2-inch row spacing offer easy integration, while the straight mount orientation provides versatility in installation. With a rated amperage of 3A and an operating temperature range of -40 to 105°C, this connector is suitable for a wide range of industrial and commercial applications. Upgrade your connectivity solutions with the 337-064-540-203 Card Edge Connector.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-064-540-203 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 64 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-064-540-203 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
