| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-062-558-201 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 62 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Mounting Angle: | Right Angle |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 62 |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-062-558-201 |
337-062-558-201
| ICC Number: | EDA337-062-558-201 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-062-558-201 |
| ECAD Model: | |
Specifications
Detailed Description

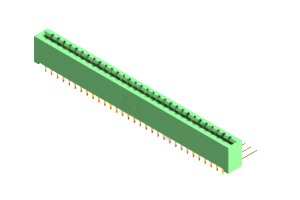

Introducing the 337-062-558-201, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. Featuring a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in all applications. With two rows of copper alloy contacts, each rated for 3 A, and a total of 62 positions, it offers reliable power and signal transmission. The right-angle mount orientation and .156-inch pitch make it easy to integrate into your PCB layout, while the wide operating temperature range of -40 to 105 °C guarantees performance in harsh environments. Whether for industrial or commercial use, this connector is a dependable choice for your connectivity needs.
