| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-062-542-268 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 62 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 62 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-062-542-268 |
337-062-542-268
| ICC Number: | EDA337-062-542-268 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-062-542-268 |
| ECAD Model: | |
Specifications
Detailed Description

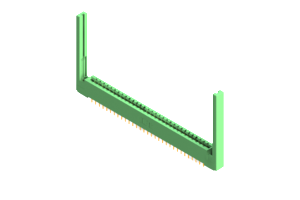

Introducing the 337-062-542-268 Card Edge Connector, a crucial component for seamless board-to-board PCB connectivity. This connector, featuring 62 positions in a 2-row configuration, ensures efficient data and power transmission with a low 3A amperage. Crafted from high-quality UL 94V-0 Thermoplastic Polyester housing and durable copper alloy contacts, it guarantees reliable performance even in harsh environments, operating flawlessly between -40 and 105°C. The .156-inch pitch and .2-inch row spacing allow for easy integration, while the sleek green design adds a touch of visual appeal to any assembly. Trust in the 337-062-542-268 for secure and stable card edge connections in your electronic devices.
