| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-062-520-203 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 62 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 62 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-062-520-203 |
337-062-520-203
| ICC Number: | EDA337-062-520-203 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-062-520-203 |
| ECAD Model: | |
Specifications
Detailed Description

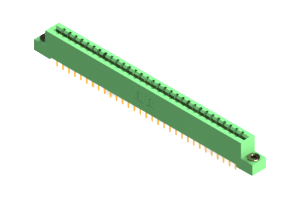

Introducing the 337-062-520-203, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a sleek green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in all applications. With two rows of copper alloy contacts, each rated for 3 A, it offers reliable power and signal transmission. The .156-inch pitch and .2-inch row spacing, along with 62 positions, provide ample connectivity options. Designed for straight mounting orientation, this connector operates flawlessly in a wide temperature range from -40 to 105 °C. Whether for consumer electronics or industrial systems, the 337-062-520-203 is the perfect choice for high-speed and high-reliability board-to-board connections.
