| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-060-559-804 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 60 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-060-559-804 |
337-060-559-804
| ICC Number: | EDA337-060-559-804 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-060-559-804 |
| ECAD Model: | |
Specifications
Detailed Description

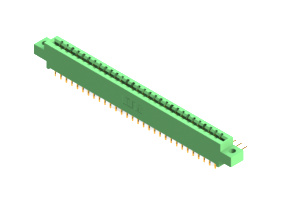

Introducing the 337-060-559-804 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic devices. This green connector boasts a robust housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. With two rows of copper alloy contacts and a pitch of .156 inches, it offers reliable connectivity in a compact design. Featuring 60 positions and a right-angle mount orientation, it allows for efficient cable routing and space-saving installation. Operating flawlessly in a wide temperature range from -40 to 105 °C, this connector is ideal for use in various industrial applications. Trust in the 337-060-559-804 for high-performance and secure card edge connections in your electronic systems.
