| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-060-559-204 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 60 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-060-559-204 |
337-060-559-204
| ICC Number: | EDA337-060-559-204 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-060-559-204 |
| ECAD Model: | |
Specifications
Detailed Description

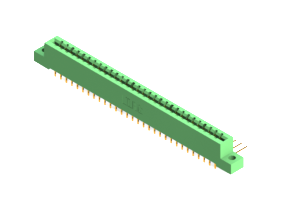

Introducing the 337-060-559-204 Card Edge Connector, a reliable and high-performance connectivity solution for your PCBs. This two-row connector features 60 positions, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures longevity and stability in operation, even in harsh environments. The green color coding and right-angle mount orientation offer easy identification and space-saving installation. With a low operating temperature of -40°C and a maximum of 105°C, this connector is suitable for a wide range of applications. Trust in the 337-060-559-204 for efficient and secure card edge connections in your electronic designs.
