| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-058-559-202 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 58 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 58 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-058-559-202 |
337-058-559-202
| ICC Number: | EDA337-058-559-202 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-058-559-202 |
| ECAD Model: | |
Specifications
Detailed Description

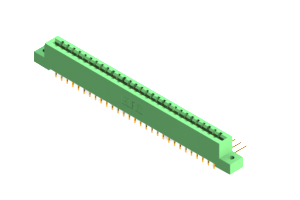

Introducing the 337-058-559-202, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. Featuring a sleek Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety. With two rows of 58 positions, it offers ample connectivity options, while the Copper Alloy contacts guarantee reliable signal transmission. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is perfect for a wide range of industries. Its Right Angle mount orientation allows for easy installation, making it a convenient choice for any project. Trust in the 337-058-559-202 for efficient and secure PCB connections.
