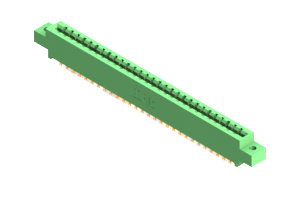

337-058-555-802
Card Edge Connector
The 337-058-555-802 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 58 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures reliable performance in a wide range of applications. With a current rating of 3A and an operating temperature range of -40 to 105°C, it is suitable for use in demanding environments. The green color coding and straight mount orientation make installation easy and efficient. Trust in the quality and durability of the 337-058-555-802 for your connectivity needs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-058-555-802 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 58 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-058-555-802 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
