| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-058-521-208 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 58 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 58 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-058-521-208 |
337-058-521-208
| ICC Number: | EDA337-058-521-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-058-521-208 |
| ECAD Model: | |
Specifications
Detailed Description

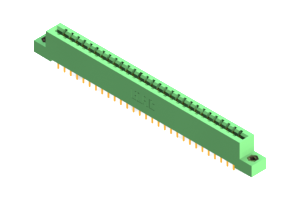

Introducing the 337-058-521-208 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 58 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring efficient and secure board-to-board connections. Crafted from durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector is built to last, even in harsh operating environments ranging from -40 to 105°C. With a current rating of 3A, it is suitable for a wide range of applications. Its straight mount orientation and green color make it easy to install and identify. Trust in the reliability and quality of this connector for your next project.
