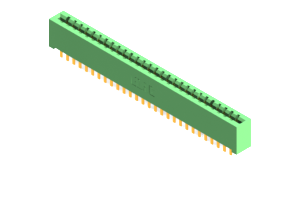

337-056-544-201
Card Edge Connector
The 337-056-544-201 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 56 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for secure and efficient board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures long-lasting durability and excellent conductivity. Rated for an operating temperature range of -40 to 105 °C and boasting a current rating of 3 A, it is suitable for a wide range of applications. With its straight mount orientation and green color coding for easy identification, the 337-056-544-201 is the perfect choice for your next project.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-056-544-201 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 56 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-056-544-201 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
