337-056-542-268

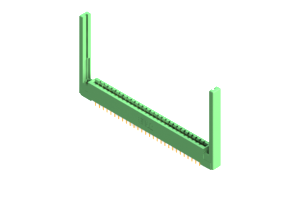

Card Edge Connector
The 337-056-542-268 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector features 56 positions, allowing for efficient data and power transmission. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and high-quality copper alloy contacts, it ensures reliable performance in a wide operating temperature range from -40 to 105 °C. The .156-inch pitch and .2-inch row spacing, along with a straight mount orientation, facilitate easy installation. Rated for 3A, this connector is ideal for various electronic applications, guaranteeing secure and stable connections. Upgrade your PCB assembly with this top-of-the-line Card Edge Connector for unparalleled functionality and durability.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-056-542-268 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 56 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-056-542-268 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
