| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-056-540-808 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 56 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 56 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-056-540-808 |
337-056-540-808
| ICC Number: | EDA337-056-540-808 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-056-540-808 |
| ECAD Model: | |
Specifications
Detailed Description

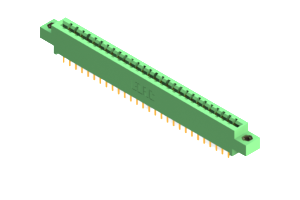

Introducing the 337-056-540-808 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. This green connector, featuring two rows and 56 positions, is designed for high-performance applications with an amperage rating of 3A. Crafted from UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures durability and reliability even in harsh operating conditions ranging from -40 to 105°C. With a pitch of .156 inches and row spacing of .2 inches, this connector offers precise and secure connectivity. Whether used in consumer electronics or industrial systems, the 337-056-540-808 guarantees seamless signal transmission, making it a must-have for design engineers.
