| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-054-523-803 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 54 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 54 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-054-523-803 |
337-054-523-803
| ICC Number: | EDA337-054-523-803 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-054-523-803 |
| ECAD Model: | |
Specifications
Detailed Description

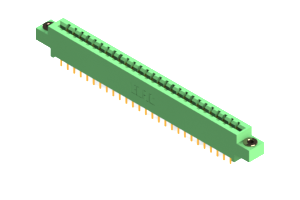

Introducing the 337-054-523-803 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 54 positions, allowing for seamless board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures excellent conductivity and longevity. With a low pitch of .156 inches and row spacing of .2 inches, this connector offers efficient signal transmission in compact spaces. Rated for an operating temperature range of -40 to 105°C, it is suitable for a wide range of environments. Whether for industrial or commercial applications, trust the 337-054-523-803 for secure and dependable connectivity.
