| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-052-556-812 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 52 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 52 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-052-556-812 |
337-052-556-812
| ICC Number: | EDA337-052-556-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-052-556-812 |
| ECAD Model: | |
Specifications
Detailed Description

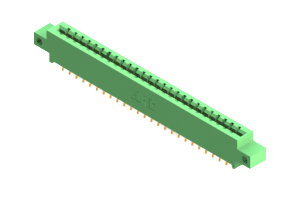

Introducing the 337-052-556-812 Card Edge Connector, a vital component for seamless board-to-board PCB connections. Crafted with precision and durability in mind, this connector boasts a vibrant green housing made of UL 94V-0 Thermoplastic Polyester, ensuring safety and reliability. With two rows of high-quality copper alloy contacts, each rated for 3A, it offers a total of 52 positions with a pitch of .156 inches. Its straight mount orientation and .2-inch row spacing make it easy to integrate, while its wide operating temperature range of -40 to 105°C guarantees performance in diverse environments. Trust in the 337-052-556-812 for efficient and secure connectivity in your electronic applications.
