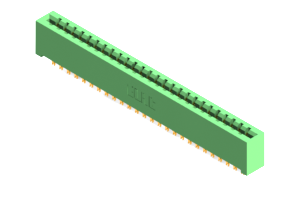

337-052-555-201
Card Edge Connector
The 337-052-555-201, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This two-row connector features 52 positions, allowing for efficient data transmission in electronic devices. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable connectivity in demanding environments. The .156-inch pitch and .2-inch row spacing accommodate standard PCB layouts, while the straight mount orientation offers easy installation. With a low operating temperature of -40°C and a maximum of 105°C, this connector is suitable for a wide range of applications. Trust in the 337-052-555-201 for robust and efficient card edge connections in your electronic designs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-052-555-201 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 52 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-052-555-201 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
