| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-052-541-804 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 52 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 52 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-052-541-804 |
337-052-541-804
| ICC Number: | EDA337-052-541-804 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-052-541-804 |
| ECAD Model: | |
Specifications
Detailed Description

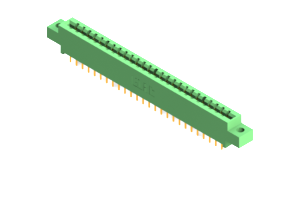

Introducing the 337-052-541-804 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This two-row connector features 52 positions, allowing for seamless board-to-board connections. Crafted from durable UL 94V-0 Thermoplastic Polyester, with copper alloy contacts, it ensures longevity and stability in operation. With a low pitch of .156 inches and row spacing of .2 inches, it offers efficient signal transmission. The green housing color not only adds visual appeal but also indicates its amperage rating of 3A. Suitable for a wide range of applications, this connector operates flawlessly in temperatures ranging from -40 to 105°C. Upgrade your connectivity setup with the 337-052-541-804 for optimal performance.
