| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-052-520-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 52 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 52 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-052-520-212 |
337-052-520-212
| ICC Number: | EDA337-052-520-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-052-520-212 |
| ECAD Model: | |
Specifications
Detailed Description

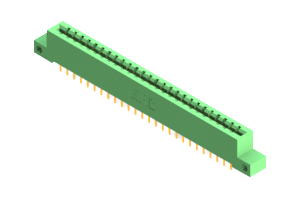

Introducing the 337-052-520-212, a high-performance Card Edge Connector designed for reliable board-to-board connections. Featuring a vibrant Green color, this connector is not only functional but also adds a pop of color to your PCB assembly. With a current rating of 3 A, it ensures efficient power transmission. The housing is constructed from UL 94V-0 Thermoplastic Polyester for durability and safety. With two rows of Copper Alloy contacts, spaced at .156 inches with .2 inches between rows, it offers 52 positions for seamless connectivity. Designed for straight mounting orientation, it operates flawlessly in a wide temperature range from -40 to 105 °C. Trust in the 337-052-520-212 for your connectivity needs.
