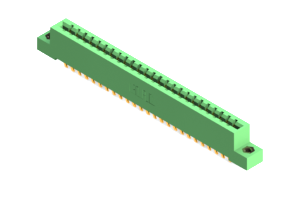

337-050-560-208
Card Edge Connector
The 337-050-560-208 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector features 50 positions, with a pitch of .156 inches and row spacing of .2 inches, ensuring efficient and reliable board-to-board connections. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector is designed to withstand harsh operating environments, with an impressive amperage rating of 3A. Its straight mount orientation and green color make it easy to integrate into your system, while its wide operating temperature range of -40 to 105°C guarantees performance in diverse applications. Trust the 337-050-560-208 for secure and efficient card edge connectivity in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-050-560-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 50 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-050-560-208 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
