| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-050-541-212 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 50 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 50 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-050-541-212 |
337-050-541-212
| ICC Number: | EDA337-050-541-212 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-050-541-212 |
| ECAD Model: | |
Specifications
Detailed Description

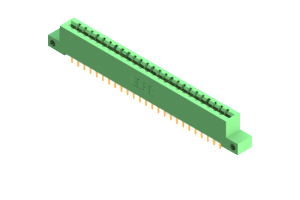

Introducing the 337-050-541-212, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. With a vibrant Green color, this connector not only stands out visually but also delivers superior functionality with a rated amperage of 3 A. Crafted from UL 94V-0 Thermoplastic Polyester, it ensures robust housing for reliable performance. Featuring two rows of copper alloy contacts, a pitch of .156 inches, and a total of 50 positions, this connector offers ample connectivity options. Its straight mount orientation and wide operating temperature range of -40 to 105 °C make it versatile for various environments. Trust in the 337-050-541-212 for efficient and durable card edge connections in your projects.
