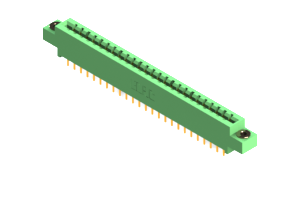

337-050-540-803
Card Edge Connector
The 337-050-540-803 Card Edge Connector, a durable and reliable solution for your PCB connectivity needs. With a sleek green design and two rows of 50 positions, this connector offers ample space for seamless board-to-board connections. Constructed from high-quality UL 94V-0 Thermoplastic Polyester and featuring copper alloy contacts, it ensures superior performance even in harsh environments. With a low pitch of .156 inches and row spacing of .2 inches, it allows for efficient signal transmission. Rated for an operating temperature range of -40 to 105°C and with a current rating of 3A, this connector is suitable for a wide range of applications. Whether you're working on consumer electronics or industrial machinery, the 337-050-540-803 is the perfect choice for high-speed and high-density connectivity.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-050-540-803 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 50 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-050-540-803 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
