| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-048-523-812 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 48 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 48 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-048-523-812 |
337-048-523-812
| ICC Number: | EDA337-048-523-812 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-048-523-812 |
| ECAD Model: | |
Specifications
Detailed Description

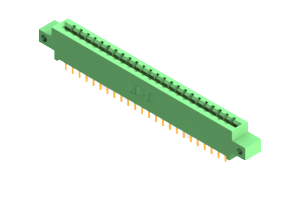

Introducing the 337-048-523-812 Card Edge Connector, a vital component for seamless board-to-board PCB connections in electronic devices. This green connector, featuring two rows of 48 positions, is engineered for high performance, with a low amperage of 3A and a durable housing made of UL 94V-0 rated thermoplastic polyester. Each contact is constructed from robust copper alloy, ensuring reliable conductivity. With a pitch of .156 inches and a row spacing of .2 inches, precise alignment is guaranteed. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is ideal for a wide range of applications in various industries. Trust in the quality and dependability of the 337-048-523-812 for all your connectivity needs.
