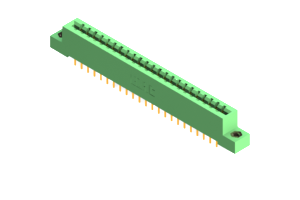

337-046-541-208
Card Edge Connector
The 337-046-541-208 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This two-row connector, boasting a total of 46 positions, ensures reliable contact thanks to its high-quality copper alloy construction. The housing, made of UL 94V-0 rated thermoplastic polyester in a sleek green color, guarantees durability even in harsh operating conditions ranging from -40 to 105 °C. With a low 3A amperage and a .156-inch pitch, this connector is ideal for various electronic applications. Its straight mount orientation and .2-inch row spacing offer easy installation, making it a must-have for any PCB assembly project. Please note, this connector is not classified as high-reliability.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-046-541-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 46 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-046-541-208 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
