| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-046-540-204 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 46 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 46 |
| Termination Method: | Wire Wrap |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-046-540-204 |
337-046-540-204
| ICC Number: | EDA337-046-540-204 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-046-540-204 |
| ECAD Model: | |
Specifications
Detailed Description

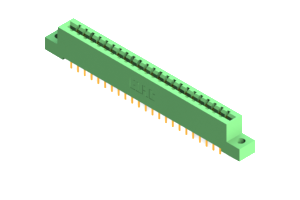

Introducing the 337-046-540-204, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a vibrant Green color for easy identification, this connector boasts a robust housing made of UL 94V-0 Thermoplastic Polyester, ensuring durability and safety. With two rows of 46 positions, it offers ample connectivity in a compact .156-inch pitch. The contact material, Copper Alloy, guarantees reliable signal transmission, even in harsh environments with an operating temperature range of -40 to 105 °C. Perfect for various PCB applications, this connector is a must-have for any project requiring secure and efficient board-to-board connectivity.
