| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-046-523-804 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 46 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Through Hole |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 46 |
| Termination Method: | Solder |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-046-523-804 |
337-046-523-804
| ICC Number: | EDA337-046-523-804 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-046-523-804 |
| ECAD Model: | |
Specifications
Detailed Description

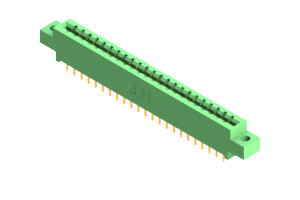

Introducing the 337-046-523-804 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This two-row connector, featuring 46 positions with a pitch of .156 inches, ensures seamless board-to-board contact. Crafted from UL 94V-0 Thermoplastic Polyester housing and durable Copper Alloy contacts, it guarantees reliable performance in demanding environments. With a green color and a straight mount orientation, it offers both functionality and visual appeal. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is ideal for a wide range of applications. Trust in the 337-046-523-804 for efficient and secure connectivity in your projects.
