| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-043-541-607 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 43 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 43 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-043-541-607 |
337-043-541-607
| ICC Number: | EDA337-043-541-607 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-043-541-607 |
| ECAD Model: | |
Specifications
Detailed Description

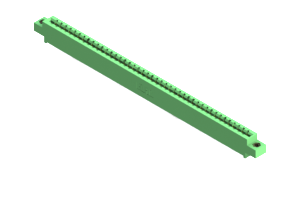

Introducing the 337-043-541-607, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. Engineered for reliability, this connector boasts a robust UL 94V-0 Thermoplastic Polyester housing and features 43 positions for ample connectivity options. With a low 3A amperage and copper alloy contacts, it ensures efficient power transmission. The .156-inch pitch and .2-inch row spacing allow for easy integration, while the straight mount orientation offers versatility in installation. Operating flawlessly in temperatures ranging from -40 to 105°C, this connector is ideal for a wide range of applications in various industries. Trust in the 337-043-541-607 for secure and dependable card edge connections.
