| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-043-524-678 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 43 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 43 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-043-524-678 |
337-043-524-678
| ICC Number: | EDA337-043-524-678 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-043-524-678 |
| ECAD Model: | |
Specifications
Detailed Description

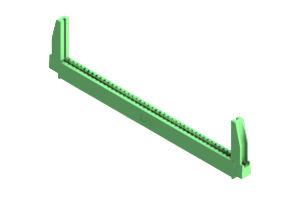

Introducing the 337-043-524-678 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This connector, featuring a single row with 43 positions, boasts a durable UL 94V-0 Thermoplastic Polyester housing and high-performance copper alloy contacts, ensuring reliable power and signal transmission. With a low 3A amperage and a wide operating temperature range of -40 to 105 °C, it is suitable for various electronic applications. The green-colored connector, with a pitch of .156 inches and row spacing of .2 inches, offers easy installation and space-saving benefits. Designed for efficiency and longevity, the 337-043-524-678 is a must-have for any project requiring secure and high-speed board connections.
