| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-043-524-612 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 43 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 43 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-043-524-612 |
337-043-524-612
| ICC Number: | EDA337-043-524-612 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-043-524-612 |
| ECAD Model: | |
Specifications
Detailed Description

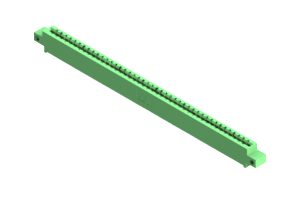

Introducing the 337-043-524-612 Card Edge Connector, a reliable solution for your PCB connectivity needs. This green connector boasts a compact design with a single row of 43 positions, perfect for space-constrained applications. Constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures durability and stable performance in demanding environments. With a low pitch of .156 inches and .2-inch row spacing, this connector offers efficient signal transmission. Rated for 3A and operating temperature range of -40 to 105°C, it guarantees reliable operation in various conditions. Whether for commercial or industrial use, this connector is a dependable choice for your board-to-board connectivity requirements.
