| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-043-524-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 43 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 43 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-043-524-602 |
337-043-524-602
| ICC Number: | EDA337-043-524-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-043-524-602 |
| ECAD Model: | |
Specifications
Detailed Description

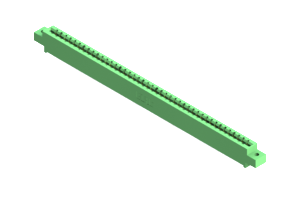

Introducing the 337-043-524-602 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector, featuring a single row of 43 positions with a pitch of .156 inches, is designed for high-speed data transmission in electronic devices. With a durable housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, it ensures reliable performance even in harsh environments. Operating flawlessly in temperatures ranging from -40 to 105 °C, this connector is suitable for a wide range of applications. Its straight mount orientation and compact design make it easy to integrate, saving valuable space on the PCB. Trust in the quality and efficiency of the 337-043-524-602 for all your connectivity needs.
