| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-043-520-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 43 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 43 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-043-520-608 |
337-043-520-608
| ICC Number: | EDA337-043-520-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-043-520-608 |
| ECAD Model: | |
Specifications
Detailed Description

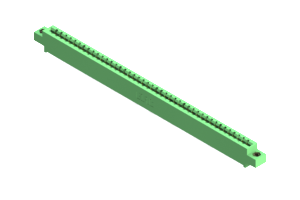

Introducing the 337-043-520-608, a high-performance Card Edge Connector designed for seamless board-to-board connectivity. This green connector, featuring a single row of 43 positions, boasts a durable housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, ensuring reliable power and signal transmission. With a low pitch of .156 inches and row spacing of .2 inches, it offers precise and efficient integration. Rated for 3A and operating in temperatures ranging from -40 to 105°C, this connector is suitable for a wide range of applications. Its straight mount orientation and high-quality construction make it a perfect choice for your connectivity needs.
