| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-042-559-208 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 42 |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 42 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-042-559-208 |
337-042-559-208
| ICC Number: | EDA337-042-559-208 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-042-559-208 |
| ECAD Model: | |
Specifications
Detailed Description

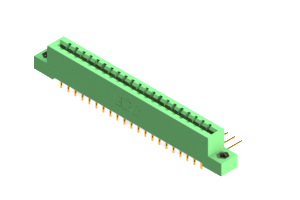

Introducing the 337-042-559-208, a high-performance Card Edge Connector designed for seamless board-to-board PCB connectivity. With a vibrant Green color and 42 positions spread across 2 rows, this connector offers both visual appeal and efficient functionality. Crafted from UL 94V-0 Thermoplastic Polyester housing and featuring Copper Alloy contacts, it ensures durability and reliable performance in a wide range of applications. With a low 3A amperage and a pitch of .156 inches, it's perfect for compact electronic devices. Its right-angle mount orientation and wide operating temperature range of -40 to 105°C make it ideal for demanding environments. Upgrade your connectivity solutions with the 337-042-559-208 Card Edge Connector.
