337-042-542-602
Card Edge Connector

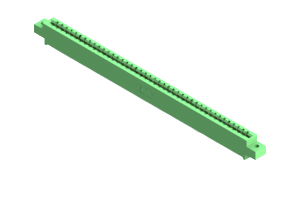

The 337-042-542-602 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector boasts a single row design with 42 positions, featuring copper alloy contacts for superior conductivity. With a low amperage rating of 3A and a pitch of .156 inches, it is perfect for various electronic applications. The housing is constructed from UL 94V-0 rated thermoplastic polyester, ensuring durability and safety. Operating efficiently in a wide temperature range from -40 to 105 °C, this connector is ideal for both standard and harsh environment settings. Its straight mount orientation and .2-inch row spacing offer easy installation and secure connections. Trust in the 337-042-542-602 for seamless board-to-board PCB connectivity in your projects.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-042-542-602 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 42 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-042-542-602 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
