| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-042-540-158 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 42 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 42 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-042-540-158 |
337-042-540-158
| ICC Number: | EDA337-042-540-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-042-540-158 |
| ECAD Model: | |
Specifications
Detailed Description

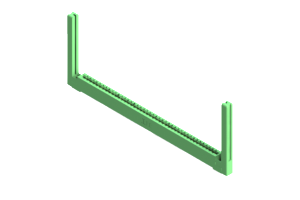

Introducing the 337-042-540-158 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector, constructed with high-quality UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, ensures reliable performance in demanding environments. With a single row design, a pitch of .156 inches, and 42 positions, it offers efficient connectivity for your electronic applications. The straight mount orientation allows for easy installation, while its wide operating temperature range of -40 to 105°C guarantees functionality in diverse conditions. Trust in the 337-042-540-158 for secure and durable card edge connections in your projects.
