| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-042-520-602 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 42 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 42 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-042-520-602 |
337-042-520-602
| ICC Number: | EDA337-042-520-602 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-042-520-602 |
| ECAD Model: | |
Specifications
Detailed Description

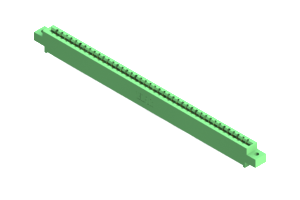

Introducing the 337-042-520-602, a high-performance Card Edge Connector designed for seamless board-to-board connections. Featuring a sleek Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety in any application. With a single row design and 42 positions, it offers ample connectivity options. The contact material, crafted from Copper Alloy, guarantees reliable signal transmission. Operating flawlessly in harsh environments, this connector has an impressive temperature range of -40 to 105 °C. Perfect for a wide range of electronic devices, the 337-042-520-602 is a must-have component for your connectivity needs.
