| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-041-559-103 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 41 |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 41 |
| Mount Orientation: | Right Angle |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | EDA337-041-559-103 |
337-041-559-103
| ICC Number: | EDA337-041-559-103 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-041-559-103 |
| ECAD Model: | |
Specifications
Detailed Description

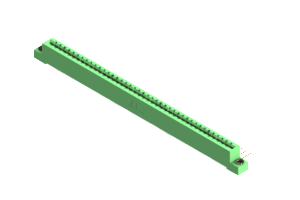

Introducing the 337-041-559-103 Card Edge Connector, a crucial component for seamless board-to-board PCB connections. Crafted with precision and durability in mind, this connector boasts a single row design with 41 positions for optimal connectivity. The housing is constructed from UL 94V-0 rated thermoplastic polyester, ensuring safety and reliability. Each contact is made from high-quality copper alloy, guaranteeing efficient power transmission. With a low pitch of .156 inches and right-angle mount orientation, this connector offers versatility in installation. Operating flawlessly in temperatures ranging from -40 to 105 °C, it is suitable for a wide range of applications. Upgrade your PCB connectivity with the 337-041-559-103 Card Edge Connector.
