| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-041-542-104 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 41 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 41 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-041-542-104 |
337-041-542-104
| ICC Number: | EDA337-041-542-104 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-041-542-104 |
| ECAD Model: | |
Specifications
Detailed Description

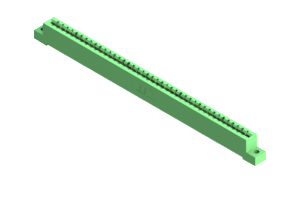

Introducing the 337-041-542-104 Card Edge Connector, a high-performance solution for your PCB connectivity needs. Designed with precision and durability in mind, this connector boasts a sleek green housing made of UL 94V-0 Thermoplastic Polyester, ensuring reliable performance even in harsh operating environments. With a single row layout and 41 copper alloy contacts, it offers seamless board-to-board connectivity with a pitch of .156 inches. The straight mount orientation and wide operating temperature range of -40 to 105°C make it versatile for a variety of applications. Trust in the 337-041-542-104 for efficient and secure connections in your electronic designs.
