337-041-523-658

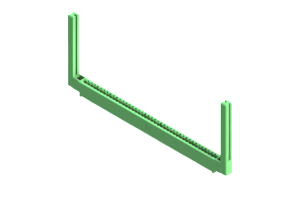

Card Edge Connector
The 337-041-523-658 Card Edge Connector, a reliable and high-performance solution for your PCB connectivity needs. This green connector features a single row design with 41 positions, allowing for seamless board-to-board connections. Constructed with UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures durability and efficient signal transmission. With a low amperage rating of 3A and a pitch of .156 inches, this connector is suitable for various applications. Its straight mount orientation and wide operating temperature range of -40 to 105°C offer versatility in installation environments. Trust in the quality and performance of the 337-041-523-658 for your critical electronic systems.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-041-523-658 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 41 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-041-523-658 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
