| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-041-520-158 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 41 |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 41 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-041-520-158 |
337-041-520-158
| ICC Number: | EDA337-041-520-158 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-041-520-158 |
| ECAD Model: | |
Specifications
Detailed Description

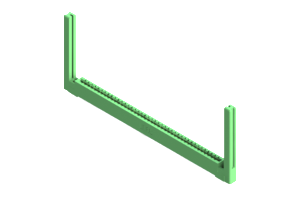

Introducing the 337-041-520-158 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector is designed for durability, with a housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, rated for up to 3 A of current. Featuring a single row of 41 positions with a .156-inch pitch, it offers reliable and efficient board-to-board connections. Its straight mount orientation and .2-inch row spacing make it easy to integrate into your system. With an operating temperature range of -40 to 105 °C, this connector is suitable for a wide range of environments. Trust in the 337-041-520-158 for secure and robust connectivity in your electronic applications.
