| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-041-500-104 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 41 |
| Number of Rows: | 1 |
| Termination Method: | Wire Hole |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Diallyl Phthalate |
| Row Spacing: | .2 in |
| Number of Positions: | 41 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-041-500-104 |
337-041-500-104
| ICC Number: | EDA337-041-500-104 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-041-500-104 |
| ECAD Model: | |
Specifications
Detailed Description

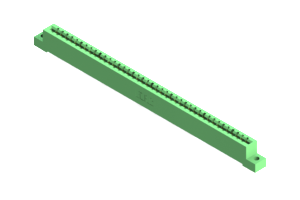

Introducing the 337-041-500-104 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector is designed for durability, with a housing made of UL 94V-0 Thermoplastic Polyester and copper alloy contacts, rated for up to 3 A of current. With 41 positions in a single row and a pitch of .156 inches, it offers versatile connectivity options. The straight mount orientation and wide operating temperature range of -40 to 105 °C make it suitable for a variety of applications. Whether you're working on consumer electronics or industrial equipment, this card edge connector is a reliable choice.
