| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-040-540-802 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 40 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 40 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-040-540-802 |
337-040-540-802
| ICC Number: | EDA337-040-540-802 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-040-540-802 |
| ECAD Model: | |
Specifications
Detailed Description

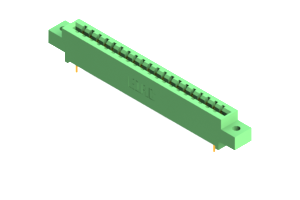

Introducing the 337-040-540-802, a high-performance Card Edge Connector designed for seamless board-to-board connectivity in electronic applications. Featuring a vibrant Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and safety. With two rows of 40 positions each, it offers ample connectivity options with a pitch of .156 inches and a row spacing of .2 inches. Crafted with precision, the contacts are made of Copper Alloy, guaranteeing reliable signal transmission. Operating flawlessly in a wide temperature range from -40 to 105°C, this connector is suitable for diverse environments. Whether for industrial or consumer electronics, the 337-040-540-802 is the perfect choice for robust and efficient connectivity.
