| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-040-540-608 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 40 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 40 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Screw Mount |
| SKU: | EDA337-040-540-608 |
337-040-540-608
| ICC Number: | EDA337-040-540-608 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-040-540-608 |
| ECAD Model: | |
Specifications
Detailed Description

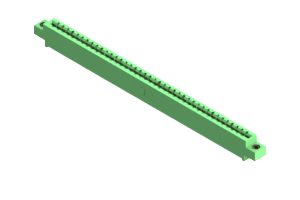

Introducing the 337-040-540-608 Card Edge Connector, a high-performance solution for seamless board-to-board PCB connections. Crafted with durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, this connector ensures reliable power and signal transmission. With a low-profile design, it features a single row of 40 positions with a .156-inch pitch, perfect for space-constrained applications. The green color coding and straight mount orientation make for easy identification and installation. Operating efficiently in temperatures ranging from -40 to 105 °C, the 337-040-540-608 is ideal for a wide range of industrial and commercial projects. Trust in this top-quality connector for your connectivity needs.
