| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-040-540-604 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 40 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 40 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| Mounting Type: | Through Hole |
| SKU: | EDA337-040-540-604 |
337-040-540-604
| ICC Number: | EDA337-040-540-604 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-040-540-604 |
| ECAD Model: | |
Specifications
Detailed Description

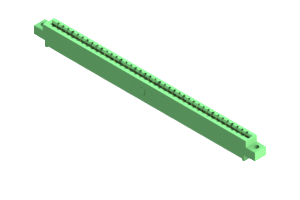

Introducing the 337-040-540-604, a high-quality Card Edge Connector designed for seamless board-to-board connectivity. Featuring a sleek Green housing made of UL 94V-0 Thermoplastic Polyester, this connector ensures durability and reliability in any application. With a low amperage rating of 3 A, it is perfect for delicate electronic components. The 1-row design with 40 positions allows for efficient data transfer, while the Copper Alloy contacts guarantee excellent signal integrity. Operating flawlessly in a wide temperature range from -40 to 105 °C, this connector is suitable for various environments. Whether in consumer electronics or industrial systems, the 337-040-540-604 is the ideal choice for secure and stable PCB connections.
