337-040-540-112

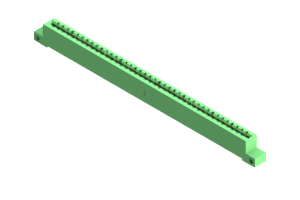

Card Edge Connector
The 337-040-540-112 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This green connector boasts a single row design with 40 positions, perfect for high-density applications. With a low amperage rating of 3 A and durable copper alloy contacts, it ensures reliable power and signal transmission. The housing is constructed from UL 94V-0 rated thermoplastic polyester, guaranteeing robust protection. Featuring a .156-inch pitch and .2-inch row spacing, it offers precise alignment for efficient connectivity. With a straight mount orientation and wide operating temperature range of -40 to 105 °C, this connector is suitable for diverse electronic systems. Trust in the 337-040-540-112 for secure and high-performance card edge connections.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-040-540-112 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 40 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-040-540-112 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
