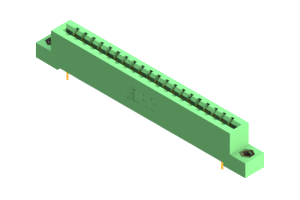

337-040-520-208
Card Edge Connector
The 337-040-520-208, a high-performance Card Edge Connector designed for seamless board-to-board connections in electronic applications. This two-row connector features 40 positions, with a pitch of .156 inches and row spacing of .2 inches, allowing for efficient and reliable data transfer. Constructed with a durable UL 94V-0 Thermoplastic Polyester housing and copper alloy contact material, this connector ensures long-lasting performance, even in harsh environments. With a low amperage rating of 3A and an operating temperature range of -40 to 105°C, it is suitable for a wide range of applications. The straight mount orientation offers easy installation, making it ideal for use in industrial and commercial settings. Trust the 337-040-520-208 for all your board-to-board connectivity needs.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-040-520-208 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 2 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 40 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-040-520-208 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
