| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-039-544-108 |
| Color: | Green |
| Amperage: | 3 A |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | 0.156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 39 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Gender: | Female |
| Mounting Type: | Screw Mount |
| Card Thickness: | 0.062 in |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Contact Plating: | Gold, Nickel, Tin |
| Number of Contacts: | 39 |
| Termination Method: | Wire Wrap |
| Insulation Material: | Thermoplastic Polyester |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-039-544-108 |
337-039-544-108
| ICC Number: | EDA337-039-544-108 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-039-544-108 |
| ECAD Model: | |
Specifications
Detailed Description

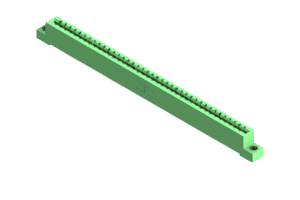

Introducing the 337-039-544-108 Card Edge Connector, a vital component for seamless board-to-board PCB connections. This connector, featuring a single row design with 39 positions, boasts exceptional durability and performance with a current rating of 3A. Crafted from high-quality UL 94V-0 Thermoplastic Polyester housing and copper alloy contacts, it ensures reliable conductivity even in harsh operating environments ranging from -40 to 105°C. The green-colored connector, with a pitch of .156 inches and row spacing of .2 inches, offers precise and secure mating for optimal signal integrity. Perfect for a wide range of applications, the 337-039-544-108 is a must-have for any project requiring robust and efficient card edge connections.
