| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-039-540-668 |
| Color: | Green |
| Amperage: | 3 A |
| Gender: | Female |
| Number of Contacts: | 39 |
| Number of Rows: | 1 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold, Nickel, Tin |
| Pitch: | 0.156 in |
| Insulation Material: | Thermoplastic Polyester |
| Row Spacing: | .2 in |
| Number of Positions: | 39 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| Current Rating: | 3 A |
| Voltage Rating: | 1800 VAC |
| Card Thickness: | 0.062 in |
| Operating Temperature: | -40 to 105 °C |
| SKU: | EDA337-039-540-668 |
337-039-540-668
| ICC Number: | EDA337-039-540-668 |
| Manufacturer: | EDAC |
| Manufacturer Number: | 337-039-540-668 |
| ECAD Model: | |
Specifications
Detailed Description

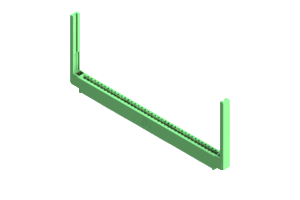

Introducing the 337-039-540-668, a high-performance Card Edge Connector designed for seamless board-to-board PCB connections. This green connector boasts a single row layout with 39 positions, featuring durable copper alloy contacts for optimal conductivity. With a low amperage rating of 3 A and a pitch of .156 inches, it is perfect for various electronic applications. The housing is made of UL 94V-0 Thermoplastic Polyester, ensuring reliable performance even in harsh environments with an operating temperature range of -40 to 105°C. Its straight mount orientation and .2-inch row spacing make installation a breeze. Trust in the 337-039-540-668 for efficient and secure PCB connectivity.
