337-039-523-108
Card Edge Connector

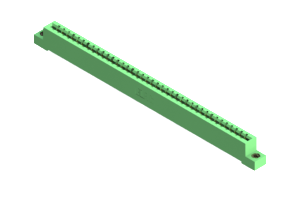

The 337-039-523-108 Card Edge Connector, a high-performance solution for your PCB connectivity needs. This green connector features a single row design with 39 positions, allowing for seamless board-to-board connections. With a low amperage rating of 3A and durable copper alloy contacts, it ensures reliable power and signal transmission. The housing is constructed from UL 94V-0 rated thermoplastic polyester, offering excellent protection against heat and fire. With a pitch of .156 inches and row spacing of .2 inches, it provides easy integration into your circuit design. Operating in a wide temperature range from -40 to 105°C, this connector is suitable for a variety of applications. Upgrade your system with the 337-039-523-108 for dependable performance in any environment.
Details
| Product Category: | |
| Manufacturer: | EDAC |
| Manufacturer Part Number: | EDAC 337-039-523-108 |
| Color: | Green |
| Amperage: | 3 A |
| Housing Material: | UL 94V-0 Thermoplastic Polyester |
| Number of Rows: | 1 |
| Contact Material: | Copper Alloy |
| Pitch: | .156 in |
| Row Spacing: | .2 in |
| Number of Positions: | 39 |
| Mount Orientation: | Straight |
| Operating Temperature Range: | -40 - 105 °C |
| SKU: | EDA337-039-523-108 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
